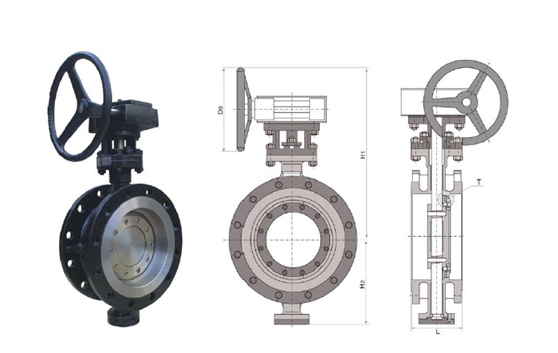

A216 WCB Triple Offset Pneumatic Actuator Butterfly Valve A126 WCB 三偏置气动执行器蝶阀

applicable medium：water

适用介质：水

drive mode：manual

驱动方式：人工操作
type of connection：flange

连接方式：法兰

construction：three-eccentric sealing

结构：三偏心密封

seal form：auto sealed

密封形式：自动密封

stem form：normal

阀杆形式：普通

pressure environment：mid-pressure(2.5mpa<pn<6.4mpa)

压力环境：中等压力(2.5mpa<pn<6.4mpa)

working temperature：normal temperature(-40℃<t<120℃)

工作温度：普通温度(-40℃<t<120℃)

manufacture of valve body：casting

阀体的制造方式：铸造

sealing material：metal hard sealed

密封面材质：金属硬密封

standard：API609

标准：API609

application：industrial usage

应用：工业

transport package：plywood case

运输包装：胶合板箱

specification：50KG/PC

规格：50KG/PC

brand：GUTE

商标：GUTE

This series butterfly valve used worm drive ,operation of the LRT and self-locking function.
Application of advanced structural design of three eccentric and flexible ring of tiny elastic deformation characteristics , the use of advanced technology and methods for process equipment manufacturing , to ensure accuracy of parts and assembly accuracy .Ensuring reliable seal a lasting pay coincide with the total elimination of the sealing surface of the interference with the mill loss . Therefore , the switch resistance small , reliable sealing , sealing surface wear small , whole working life long .
The products are widely used in metallurgical , petrochemical , oil refining , to the drainage works and other sectors.

本系列蝶阀采用蜗杆传动，操作轻便，具有自锁功能。

应用先进的三偏心结构设计和灵活的小环弹性变形的特点,使用先进的技术和方法过程设备制造,以保证零件精度和装配精度.Ensuring可靠密封持久支付配合密封表面的总消除干扰机的损失。因此，开关电阻小，密封可靠，密封面磨损小，整个工作寿命长。

产品广泛应用于冶金、石化、炼油、给排水等行业。

1.The valve design and manufacture of API609 standards
2.ANSI B16.5 by connecting flange ASME B16.47 standards
3.Inspection and test valves by API598 standards

1.阀门设计制造符合API609标准

2.连接法兰采用ANSI B16.5 ASME B16.47标准

3.按照API598标准进行阀门检验和试验
