Swing Check Valves 旋启式止回阀

Products > CHECK VALVE 止回阀 > Swing Check Valves 旋启式止回阀

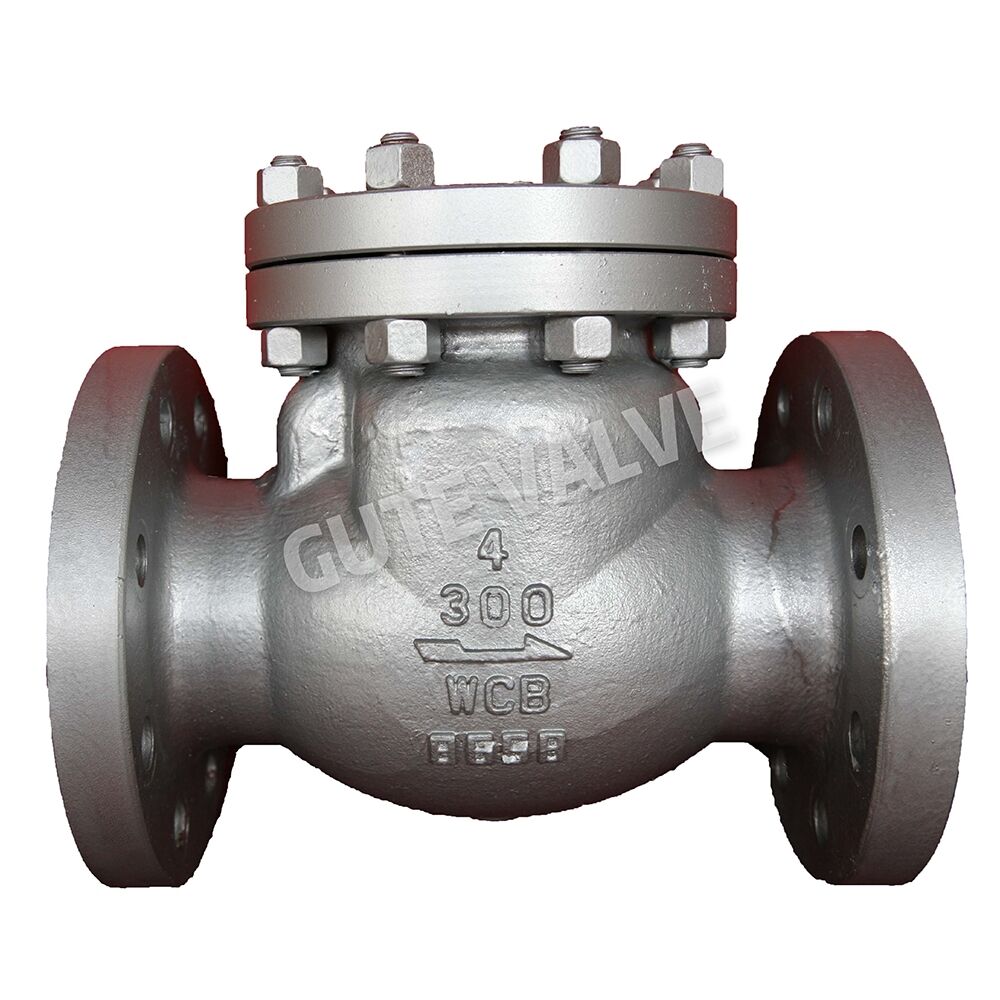

Swing Check Valves 旋启式止回阀

applicable medium:water,oil,steam,acid

working temperature:ordinary temperature

material:carbon steel,stainless steel

type of connection:flange

construction:swing

pressure environment:ordinary pressure

function:Ddcv double lobe

seal form:gland packings globe valve

flow direction:unidirection

standard:ANSI

application:industrial

transport package:plywood case

specification:50KG/PC

brand:GUTE

applicable mediumwateroilsteamacid

适用介质:水,油,蒸汽,酸

working temperatureordinary temperature

工作温度:普通温度

materialcarbon steelstainless steel

材料:碳钢,不锈钢

type of connectionflange

连接方式:法兰

constructionswing

结构:旋启式

pressure environmentordinary pressure

压力环境:普通压力

functionDdcv double lobe

功能:Ddcv 双瓣

seal formgland packings globe valve

密封形式:压盖填料截止阀

flow directionunidirection

流动方向:单向

standardANSI

标准:ANSI

applicationindustrial

应用:工业

transport packageplywood case

运输包装:胶合板箱

specification50KG/PC

规格:50KG/PC

brandGUTE

商标:GUTE
